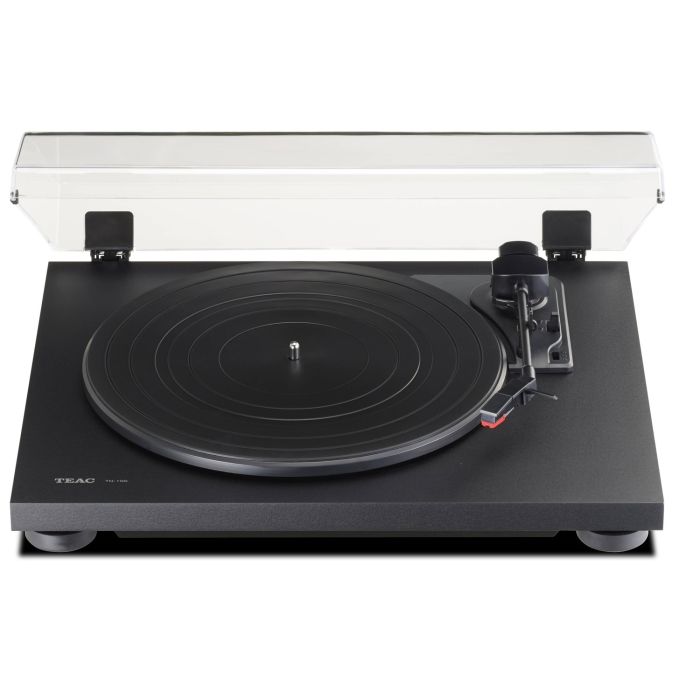

Teac TN100BN Belt Driven Turntable With Pre Amp And USB

£159.99
To order call 01263 733145
  • ColourBlack
  • Manufacturer Guarantee1 year
  • EAN4907034220601
A vinyl player for the complete enthusiast.

Designed for music enthusiasts, the belt-drive motor ensures a cleaner sound than direct-drive DJ players. The output is switchable between phono out, for use with a preamp, and line out with phono EQ for use with powered monitors or receivers. An additional USB output allows vinyl collections to be recorded to Mac or PC computers.
Unlike many budget turntables, the TN-100 has a wooden body to dampen vibrations and provide cleaner, richer sound. The three-speed, auto-return turntable is available in either a flat black or cherry finish.
For music fans who have been been collecting records for decades or those just starting out, TEAC’s TN-100 delivers the true sound of classic records.
Drive System Belt Drive
Motor DC Motor
Speed 33 1/3 RPM, 45 RPM, 78 RPM
Rotation Speed Variation +/–2%
Wow and Flutter 0.2%
Signal-to-Noise Ratio 67dB or higher (A-weighted, 20kHz LPF)
60dB or higher (unweighted, 20kHz LPF)
Platter Plastic
Diameter of Platter 12", 30cm
Tonearm section
Type Static Balance, Straight
Effective Arm Length 8.8", 223mm
Stylus Pressure Range 0 to 5g
Supported Cartridge Weight 3.5 to 6.5g
Anti-skating Adjustment Supported
Cartridge section
Type Fixed
Stylus Shape Elliptical
Stylus Construction Bonded Round Shank
Frequency Response 20Hz to 20kHz
Channel Separation 20dB at 1kHz
Channel Balance 2.0dB
Tracking Force 1.5 to 2.5g
Vertical Tracking Angle 20 degrees
Supported Load Impedance 47k ohms
Output Voltage 4.5mV +/–3dB
Stylus Pressure 2.0g +/–0.5g
Cartridge Weight 5.7g +/–0.5g
Head-shell Weight 10g (including Screws, Nuts and Wires)
Phono Equalizer Amplifier
Type of Amplifier MM type (On/Thru switchable)
Analog Output
Connector RCA Pin jack (Gold-plated)
Output Voltage Phono/Line switchable
Phono Output 4.5mV +/–3dB
Line Output 120mV (–13dBV)
USB Output section
Connector USB B type
Output Signal PCM 48kHz/16-bit
Supported OS Windows 7, Windows 8, Windows 8.1, Windows 10
OS X Lion (10.7), OS X Mountain Lion (10.8), OS X Mavericks (10.9), OS X Yosemite (10.10), OS X El Capitan (10.11)
Power AC 100 to 240V, 50/60Hz
Power Consumption 1.5W (less than 0.5W at Standby)
Overall Dimensions
(W x H x D) 16.5" x 4.6" x 14.0"
420 x 117 x 356 mm
Weight Approx. 10.8 lbs. 4.9 kg
More Information
Manufacturer Teac
GTIN 4907034220601
Colour Black
Model Number TN100BN
