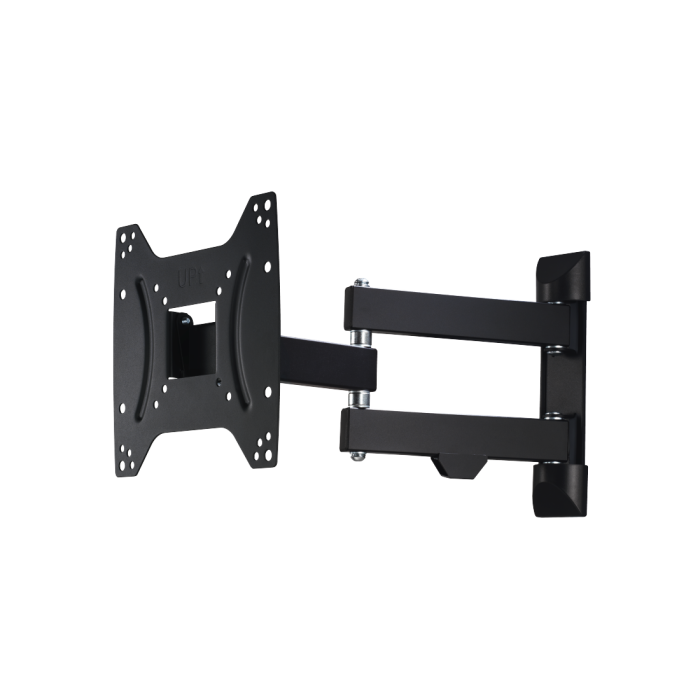

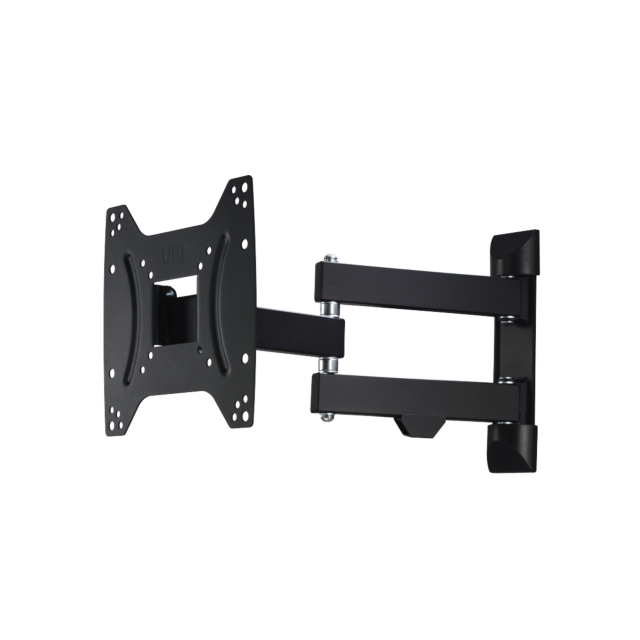

This popular basic Hama 00118101 Double Elbow Wall Bracket For a Flat screen TV dimensions 19-48' and a VESA 200 X 200 and a 316Mm Reach.
It has an Easy-Fix system for simple and fully adjustable orientation of your TV and a cable management for better organisation.

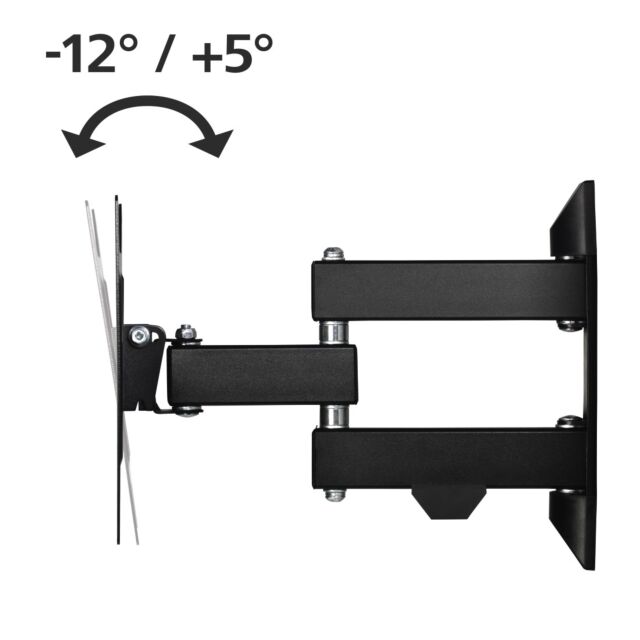

Up to +5/-12° continuous tilt and a swivel range on 3 hinges of up to 180°
The max load capacity is 20 kg
VESA (from-to) 75x75 - 200x200
VESA Standard 100 x 100, 200 x 100, 200 x 200, 75 x 75 mm
It has an Easy-Fix system for simple and fully adjustable orientation of your TV and a cable management for better organisation.
Up to +5/-12° continuous tilt and a swivel range on 3 hinges of up to 180°
The max load capacity is 20 kg
VESA (from-to) 75x75 - 200x200
VESA Standard 100 x 100, 200 x 100, 200 x 200, 75 x 75 mm
Hole Size Attachment Up to M8
Material Steel Plate
Maximum Load Capacity 20 kg
Model TV
Number of Joints 3

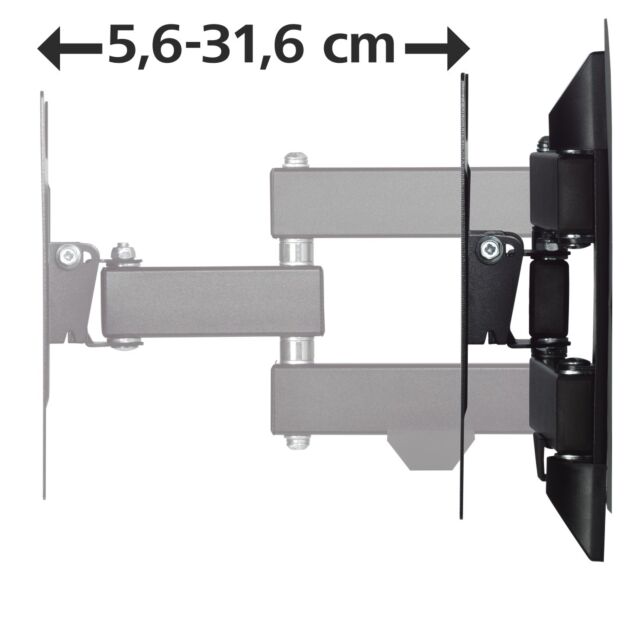

Projection maximum 31.6 cm
Projection minimum 5.6 cm
Rotation 0 °
Swivel Range 180 °
Tilt - 12 °
Tilt + 5 °
Note for Consumers
For televisions in the Sony W6/W7/W8xx series, you will also require the 00118637 screw set.
In addition to the varied installation accessories supplied, we also recommend the following tools for the installation process: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.
The dowels and screws supplied with this TV wall bracket are only suitable for concrete and solid brick walls. Please check your wall before commencing installation. If the wall is made of any other material, please source suitable dowels and screws from a specialist retailer.
To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move.
Material Steel Plate
Maximum Load Capacity 20 kg
Model TV
Number of Joints 3
Projection maximum 31.6 cm
Projection minimum 5.6 cm
Rotation 0 °
Swivel Range 180 °
Tilt - 12 °
Tilt + 5 °
Note for Consumers
For televisions in the Sony W6/W7/W8xx series, you will also require the 00118637 screw set.
In addition to the varied installation accessories supplied, we also recommend the following tools for the installation process: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.
The dowels and screws supplied with this TV wall bracket are only suitable for concrete and solid brick walls. Please check your wall before commencing installation. If the wall is made of any other material, please source suitable dowels and screws from a specialist retailer.
To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move.
| Manufacturer | Hama |
|---|---|
| GTIN | 4047443308139 |
| Colour | Black |
| Model Number | 00118101 |
Hama 00118101 Double Elbow Wall Bracket For TV 19-48"
Colour
Black
Manufacturer Guarantee
1 year
EAN
4047443308139
